Centralized Control System
Centralized Control System

This is Kotech's Control System with the least installation cost.
Instead of installing a temperature controller in each room, the heating status of all rooms is checked from the living room, and heating is controlled by time.
Its functions include heating/stop modes and 24-hour time reservation for each room.

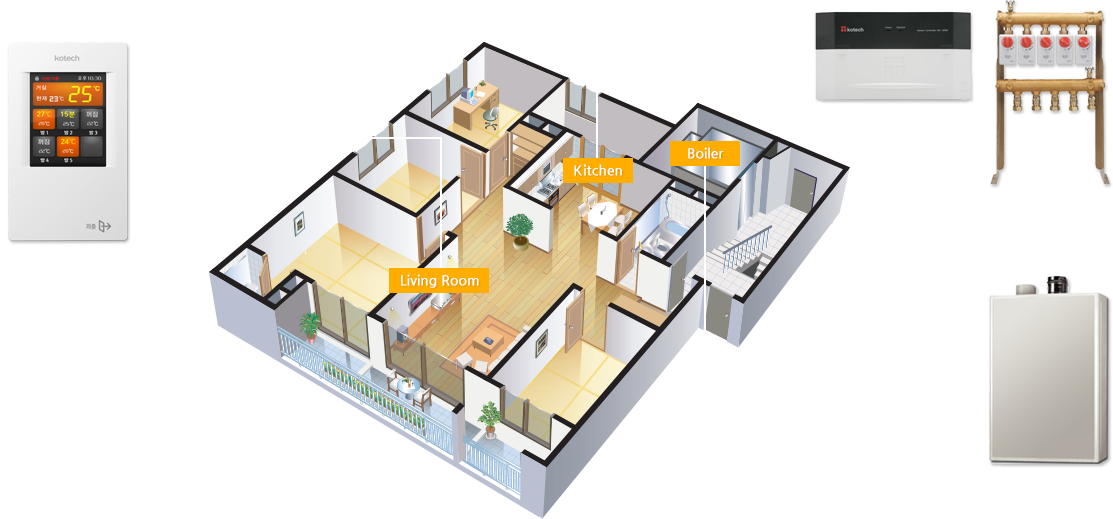

System Configuration

Centralized Control System Configuration

KRC-500F Color living room temperature controller
KRC-500F
Color living room temperature controller
Communication voltage : DC 24V, (random order, nonpolar)
LCD : 2.2-inch TFT 65K color touch screen, 32bit CPU embedded
Touch Method : capacitive touch and Impact touch
Timed heating : 24-hour timed heating possible for all rooms, time set by the hour
Intermittent heating : 3-4-5-6-9-12-15-20-25-30-60 min./hour
Automatically set temp. at 30°C
Dimensions : 72 × 120 × 12mm
MC-3100 Valve Control Box
MC-3100 Valve Control Box
Power : AC220V±10% 50/60Hz, Power cord 3P-1M
Temperature controllers : maximum connections up to 8
Valve drivers : up to 8
Boiler connection : Communication linkage or relay contact points (NO-COM-NC)
Dimensions : 200 × 110 × 35mm
KVA-300 Motorizing Valve
KVA-300 Motorized Zone Valve(Ball Type)
Power consumption : AC21V, 2.5W(While operating)
Motor/cord : AC magnet motor, VCTF 0.5㎟ × 31M
Rotational torque : 20kgf/cm
Permissible valve differential pressure : 4bar
Closing pressure : 10kg/㎠
Operating time : 15seconds - 15seconds (Open - Closed)
Valve Size : 15A, 15S (valve socket)

Special Feature
Electrically safe as it is operated at a low voltage (AC21V)
Easy manual control and identification of open/close state
No direction restraints, allowing free installation
KVA-400 Motorized Zone Valve(Disc Type)
KVA-400 Motorized Zone Valve(Disc Type)
Power consumption : AC21V, 2.5W(While operating)
Motor/cord : AC magnet motor, VCTF 0.5㎟ × 31M
Rotational torque : 20kgf/cm
Permissible valve differential pressure : 4bar
Closing pressure : 10kg/㎠
Operating time : 11seconds - 11seconds (Open - Closed)
Valve Size : 15A, 20A, 25A

Special Feature
Electrically safe as it is operated at a low voltage (AC21V)
Easy manual control and identification of open/close state
Comes with directions (install in the return pipe)
